DESCRIPTION
● Precision micro-motors with gear-driven structure for smooth and stable operation.
● 300 mm electric horizontal travel for precise positioning without moving the patient.

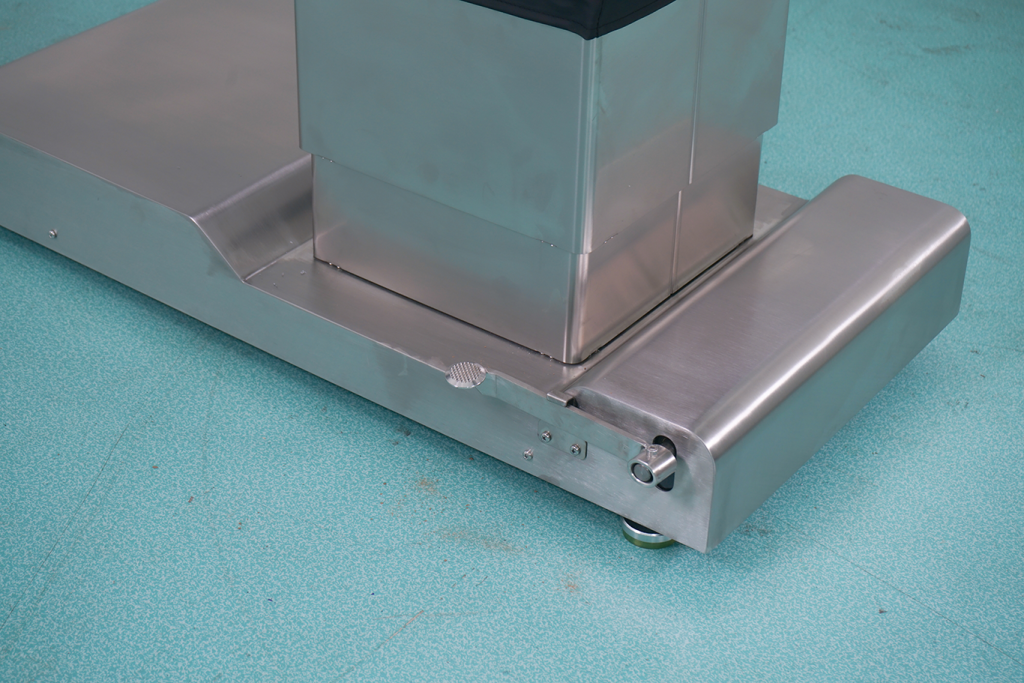

● 304 stainless steel frame with optional ABS base cover, durable and easy to clean.

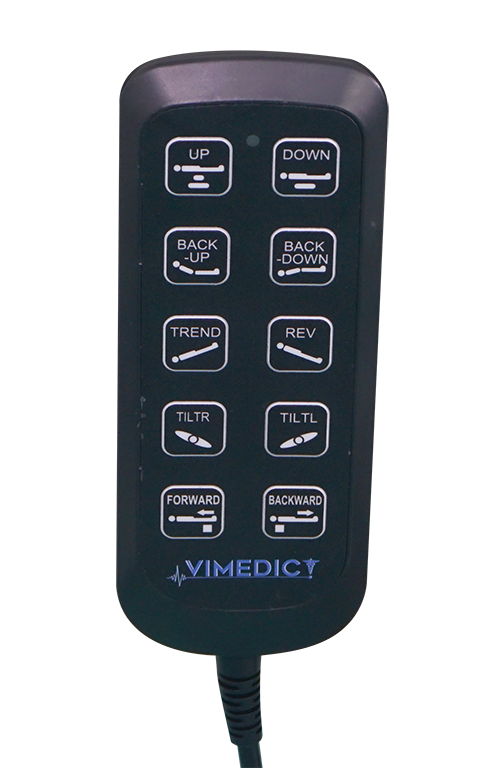

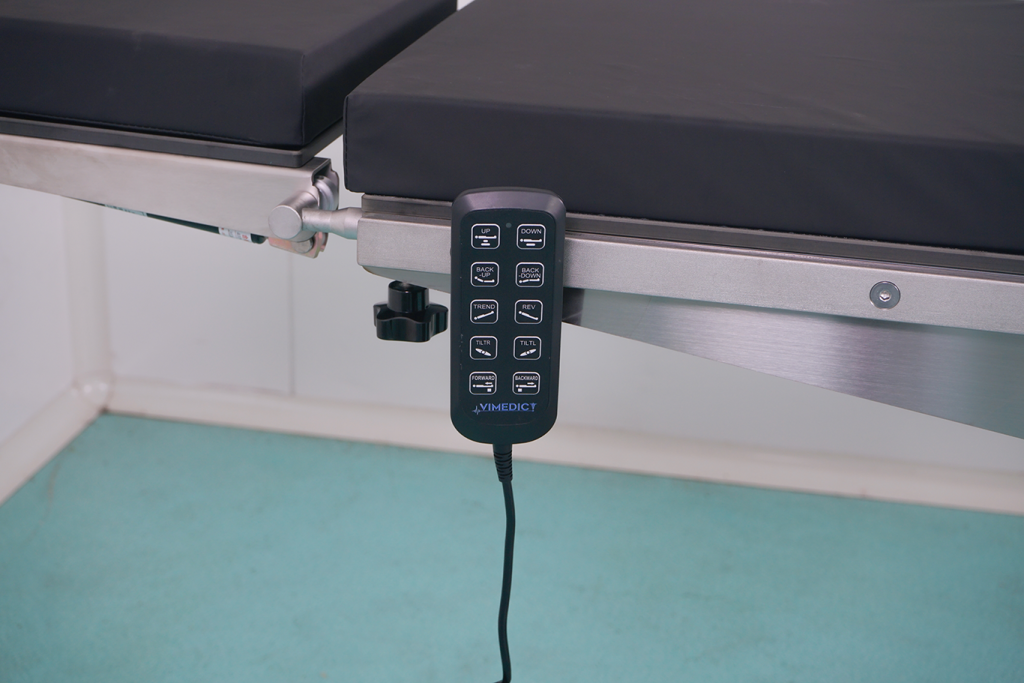

● Multi-function electric control including tilt, lift, and backrest adjustment.
● HPL tabletop with strong resistance to impact, heat, and chemicals.
● High-density seamless mattress, waterproof, detachable, and pressure-relieving.
PARAMETER
| PROJECT | 5–Electric | 4–Electric |
| Table panel size (L*W) | 2040×570mm | ✓ |
| Tabletop lowest height | 660±20mm | ✓ |
| Elevation range | 250mm | ✓ |
| Head plate | Up:45°±2° Down:90°±2°Detachable(manual) | ✓ |

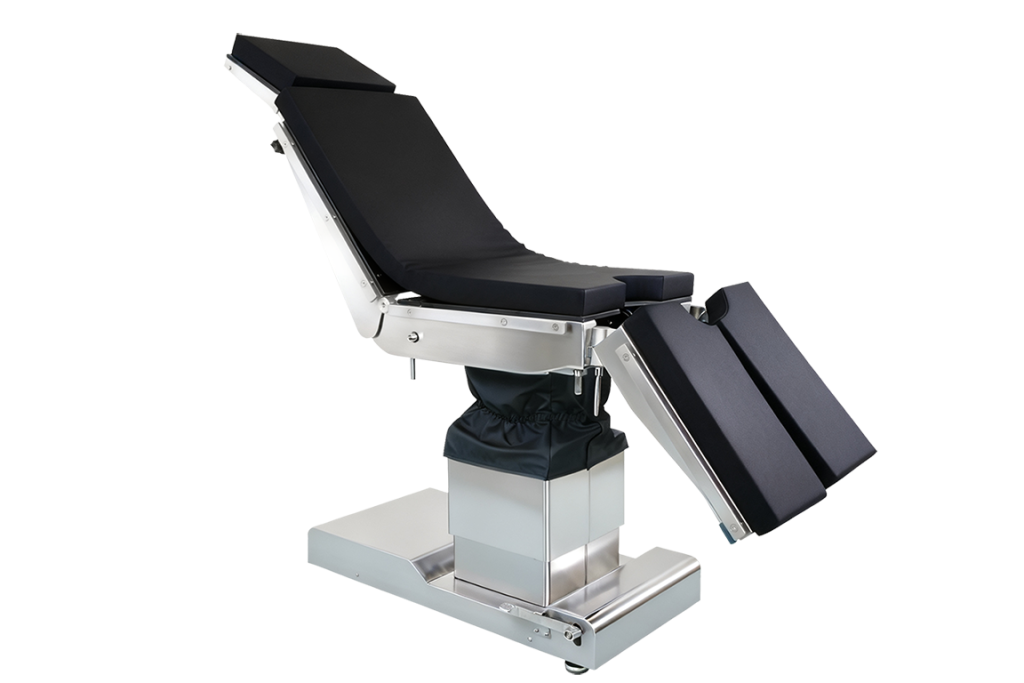

| Back panel | Up:70°±2° Down:20°±2° | ✓ |
| Trendelenburg/Reverse trendelenburg | 20°±2°/20°±2° | ✓ |
| Lateral tilt(Left and Right) | Left tilt:20°±2° Right tilt:20°±2° | ✓ |
| Leg board | Up:10°±2° Down:90°±2°(manual) | ✓ |
| Kidney Bridge elevation | 120mm | ✓ |
| Longitudinal slide | 300mm | |
| Safe carrying capacity | 250kg | ✓ |
| Net weight | 175kg | ✓ |
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
