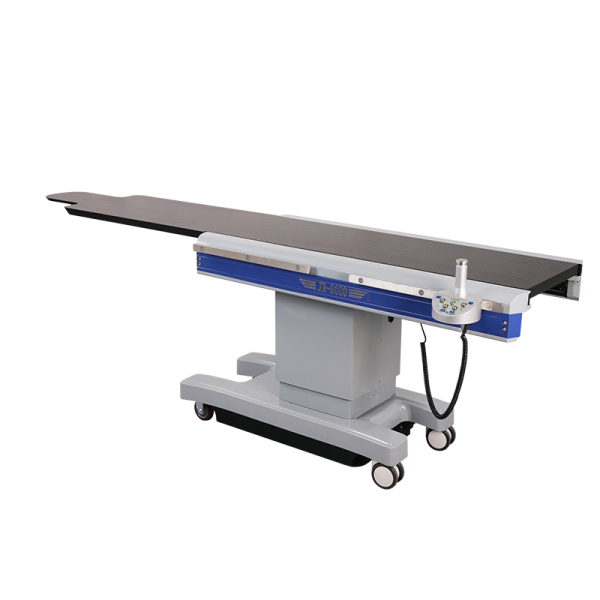

DESCRIPTION
● Precise medical micro-motor and electric gear meshing mechanical structure.

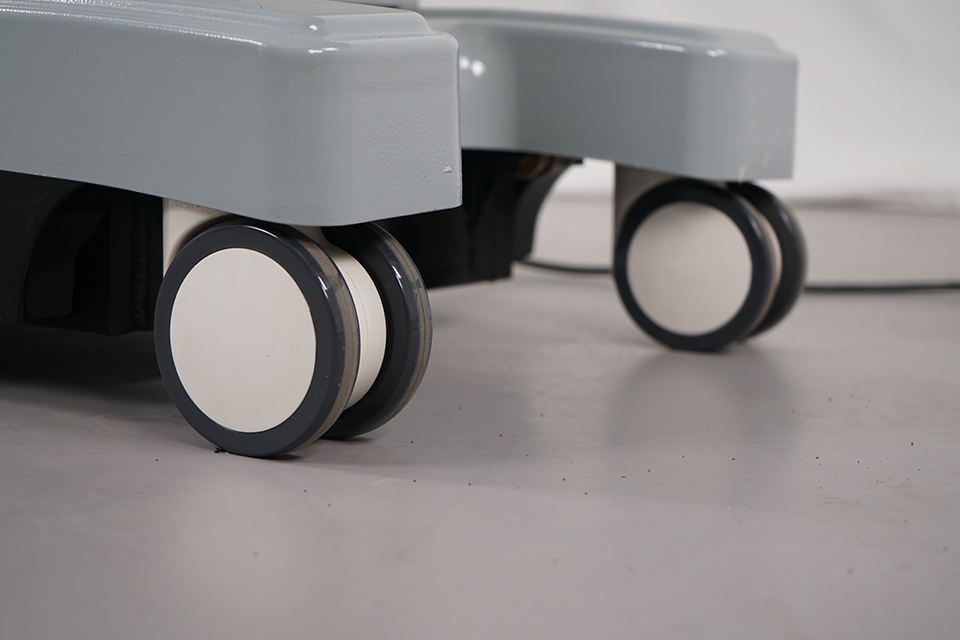

● Special casters with large wheel diameter for medical treatment.
● High-precision linear guide rail.
● The control handle is flexible and portable.
● The control of bed surfacebraking system is safe and sensitive.
● ABS engineering plastic base cover, anti-glare treatment and impact resistance.
PARAMETER
| Technical Parameter | JR-9000 |
|---|---|
| Total length | 2500±10mm |
| Length of transparent surface | 1750±10mm |
| Metal free inspection length | 1200±5mm |
| Total width(including edge rails) | 690±5mm |
| Transparent surface width | 465mm |
| Thickness | 35mm |
| X-ray absorption coefficient(aluminum equivalent) | ≤0.73mmAL |
| Maximum load-bearing capacity | 240kg |
| Horizontal movement | Manual |
| Journey | 240±20mm |
| Vertical movement | Manual |
| Journey | 770±20mm |
| Minimum height from the ground | 770±20mm |
| The highest height above the ground | 1050±20mm |
| Journey | 280±20mm |
| Average speed | 8mm/s |
| Single phase AC power | 220VAC 50/60Hz |
| Input maximum power | 300VA |
| Insurance tube | F5AL250V(5X20mm) |
| Net weight | 390kg |
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
