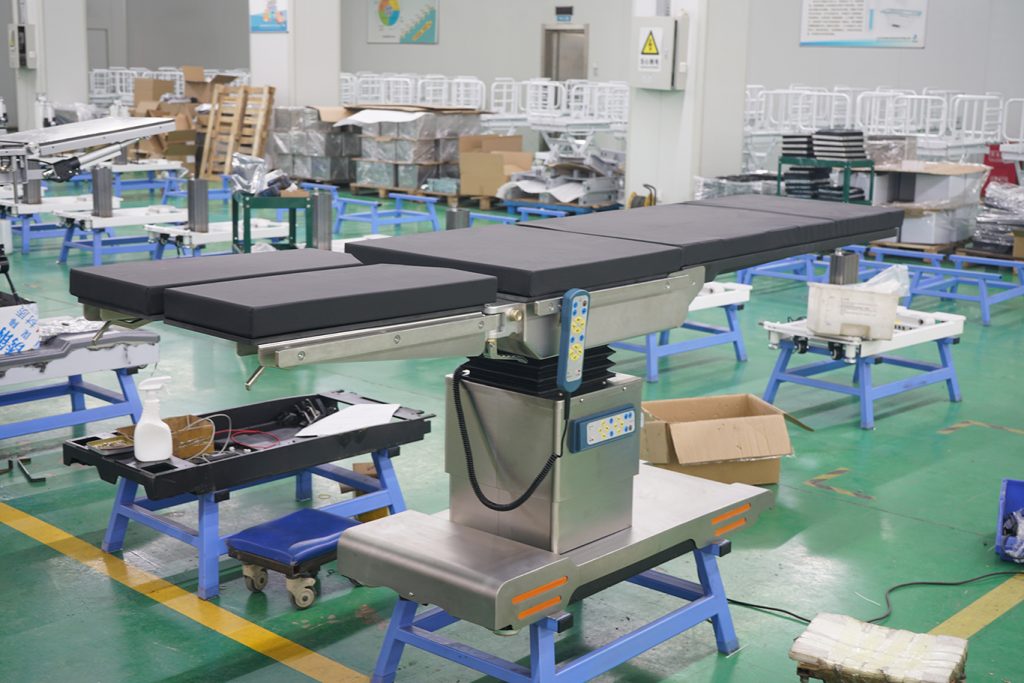

DESCRIPTION
- Precision micro-motor system replaces hydraulics—no oil leakage, stable, accurate, and durable.
- Electric 250mm longitudinal movement enables full-body C-arm imaging without repositioning.
- High-density memory mattress—comfortable, waterproof, anti-static, and easy to clean.

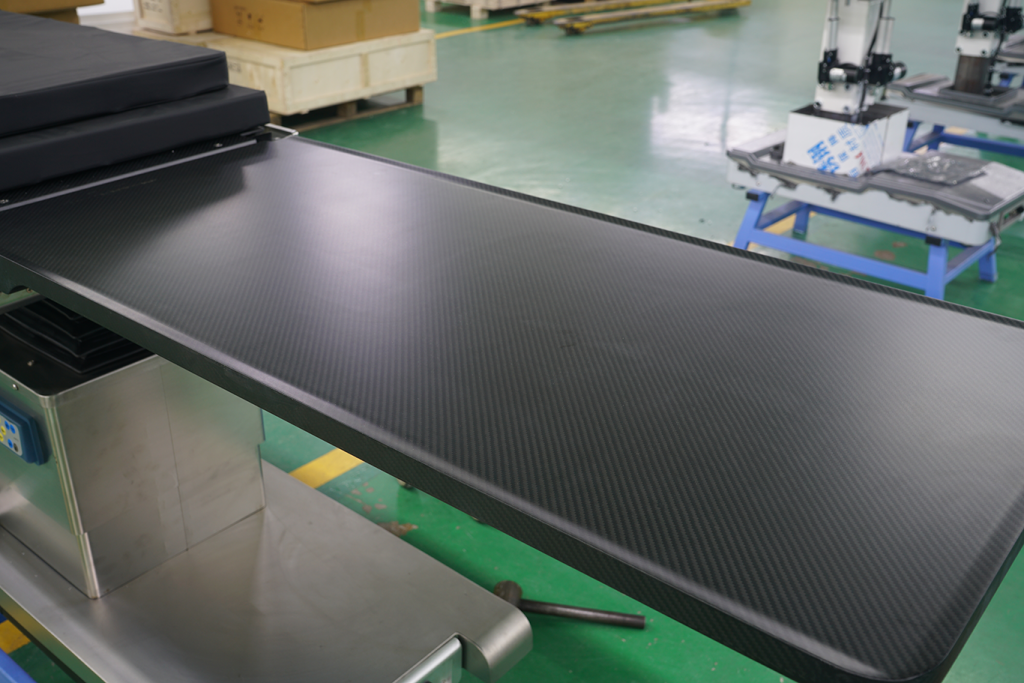

- All-carbon fiber tabletop offers low X-ray absorption and supports 360° 3D imaging.
- Carbon fiber head frame ensures high-definition 3D imaging accuracy.
- Durable stainless steel frame—rust-resistant with over 15 years lifespan.
- Anti-glare columns and ABS base cover—easy to clean and reduce visual fatigue.
- Electric brake system for stable positioning.
- Optional rechargeable battery supports 50–80 operations; also AC powered for safety.

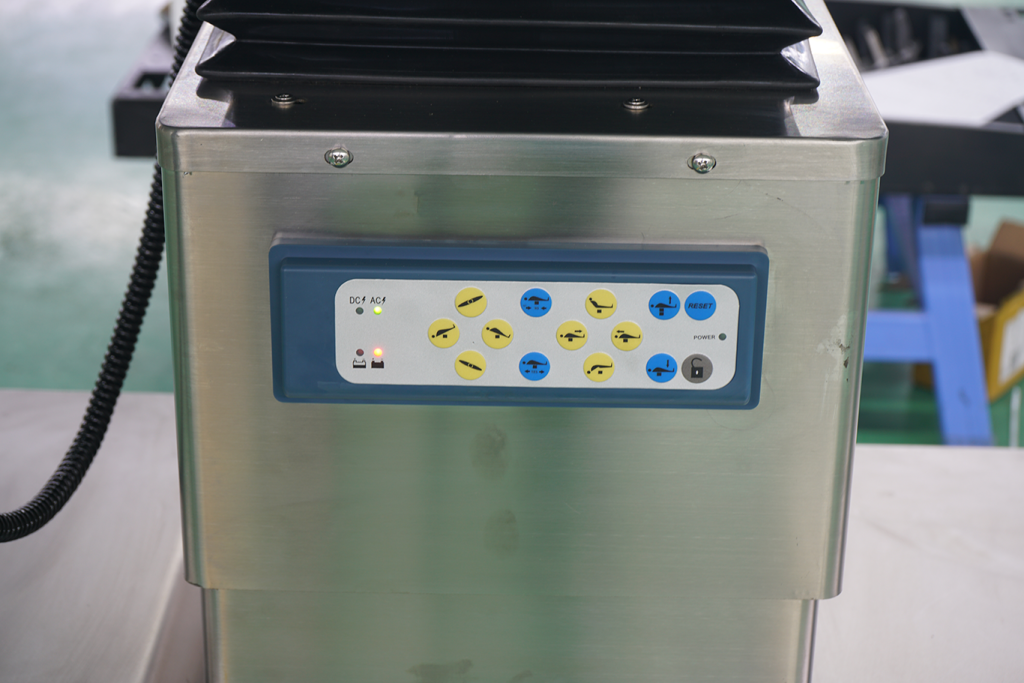

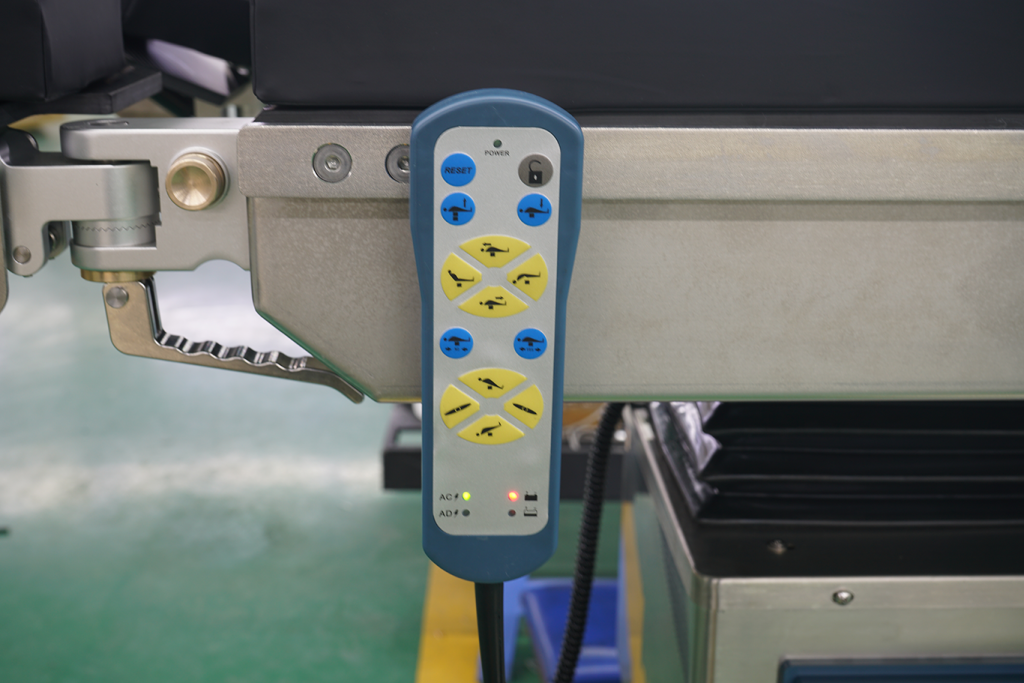

- Dual independent control systems ensure reliable operation even if one fails.
- One-touch reset improves post-surgery cleaning efficiency.
PARAMETER
| project | parameter |
| bed size | （2350×585）±10mm |
| Bed height (no mattress included) | Minimum height (730±20) mm |
| Bed height (no mattress included) | Maximum height (1030±20) mm |
| lift stroke | (300±20) mm (electric) |
| longitudinal travel of bed surface | (250±20) mm (electric) |
| cephalopodal tilt angle | Head tilt: 20°±2° (electrically adjustable) |
| cephalopodal tilt angle | Foot inclination: 20°±2° (electrically controlled) |
| roll angle | Left tilt: 25°±2° (electric) |
| roll angle | Right tilt: 25°±2° (electric) |

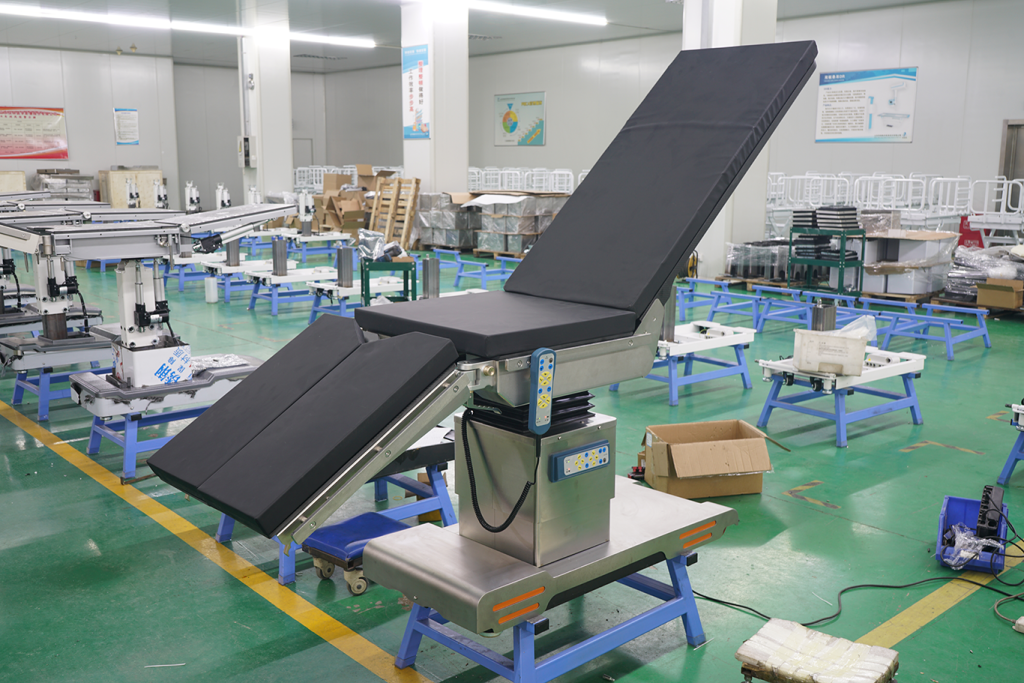

| back angle | Upward tilt: 60°±2° (electrically controlled) |
| back angle | Lower angle: 20°±2° (electric) |

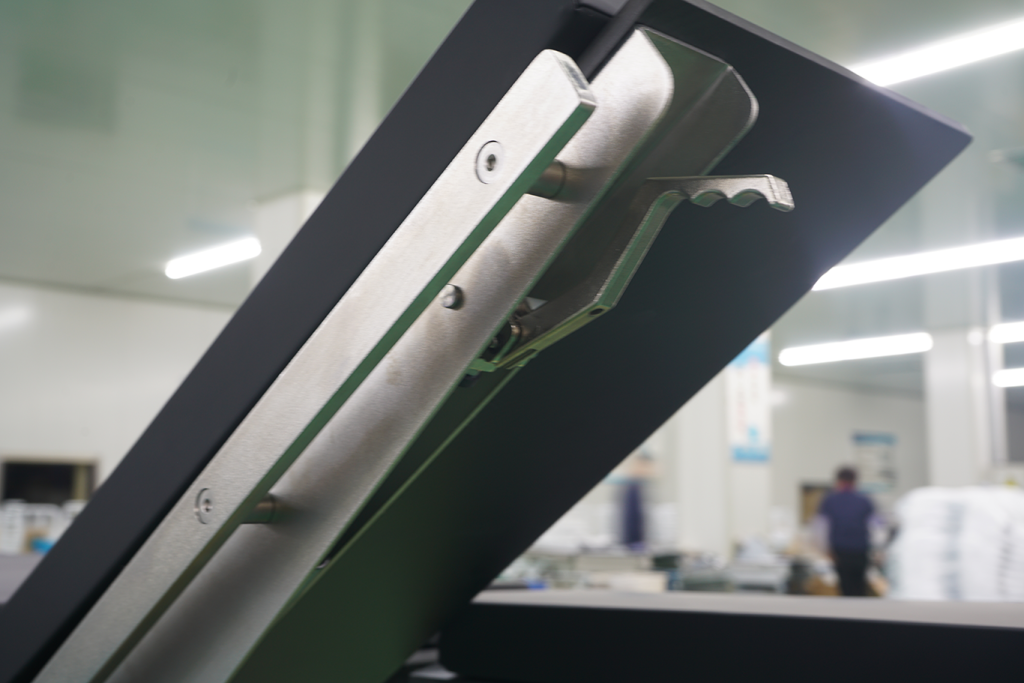

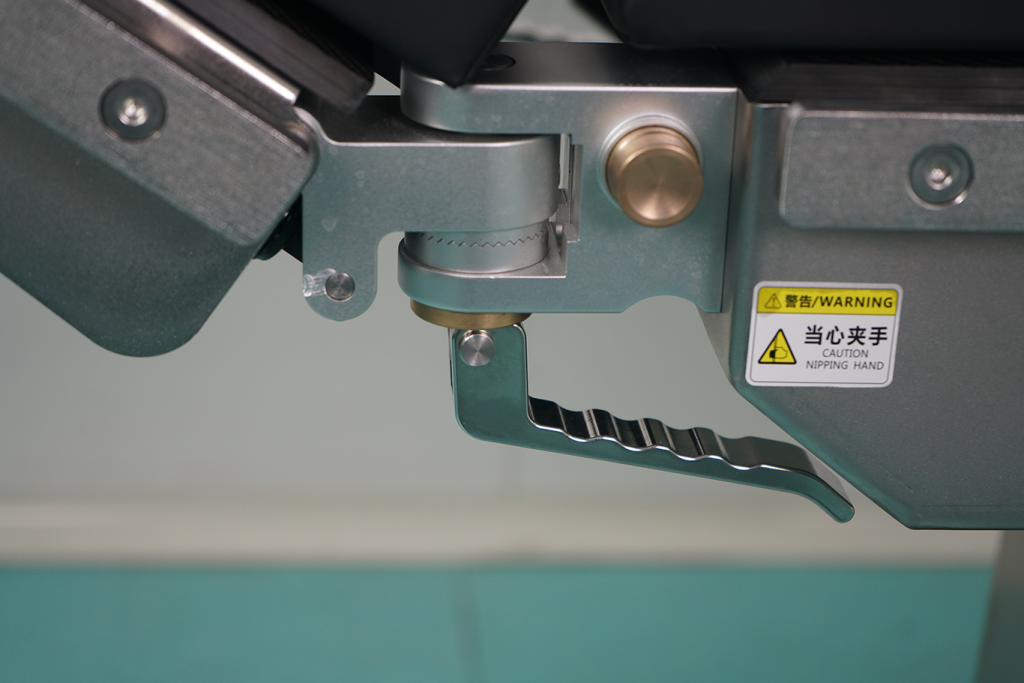

| leg fold angle | Up angle: 35°±5° (manual) |
| leg fold angle | Lower fold: 90°±5° (manual) |
|
One-click reset |
|
VIDEO
WARRANTY
We offer a 1-year standard warranty, which can be extended upon request.
Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
After the warranty period, spare parts are charged at cost, but technical support remains free.
