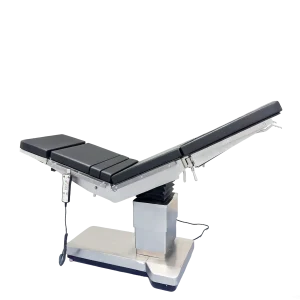

DST-3 (T) Mesa de operaciones electrohidráulica
Product Overview：
The DST-3 (T) electric hydraulic operating table is designed with an electro-hydraulic drive system, SUS304 stainless steel housing, and high-precision motors. Robotic laser welding ensures reliable performance, durability, and long-term stability.

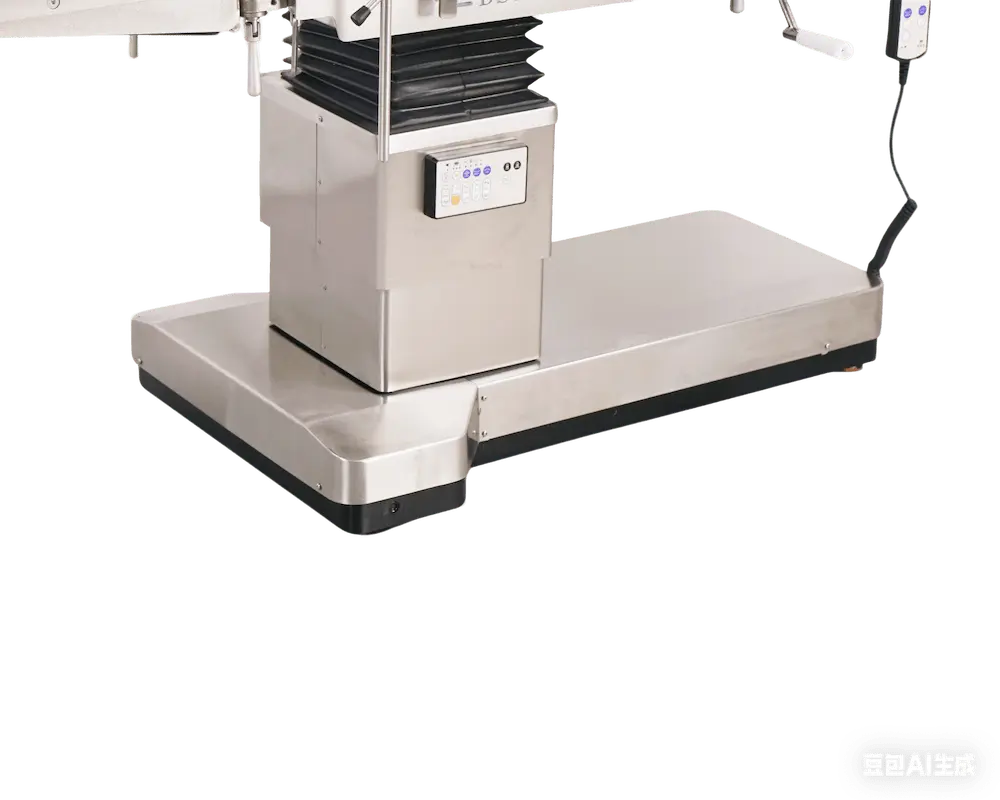

T-Base
The T-base provides optimal access forthe surgical team and OR equipment. The corrosion-resistant stainless steel designensures durability and reliability indemanding OR environments and C-arm access.

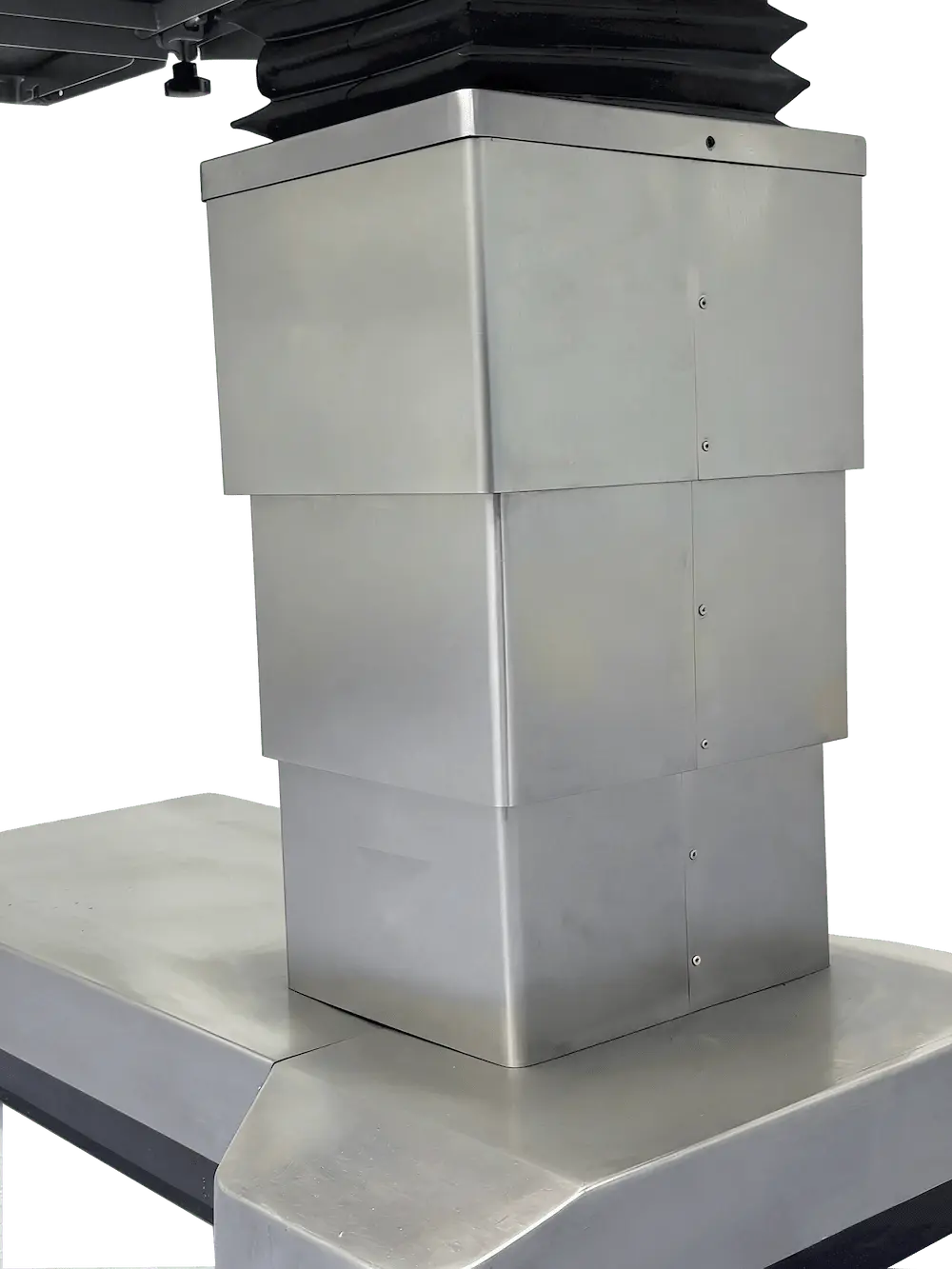

Electro-hydraulic system
Powered by microcomputer control and electric hydraulic transmission technology, it undergoes electromagnetic compatibility testing, ensuring smooth and uniform operation.
Material
Features an SUS304 stainless-steel exterior; the side rails, connectors, and accessories are also made of SUS304 stainless steel, ensuring long-term durability.
Mattress
Made with high-density integral foam that naturally conforms to the patient’s body temperature and shape, helping prevent pressure sores during extended surgical procedures.

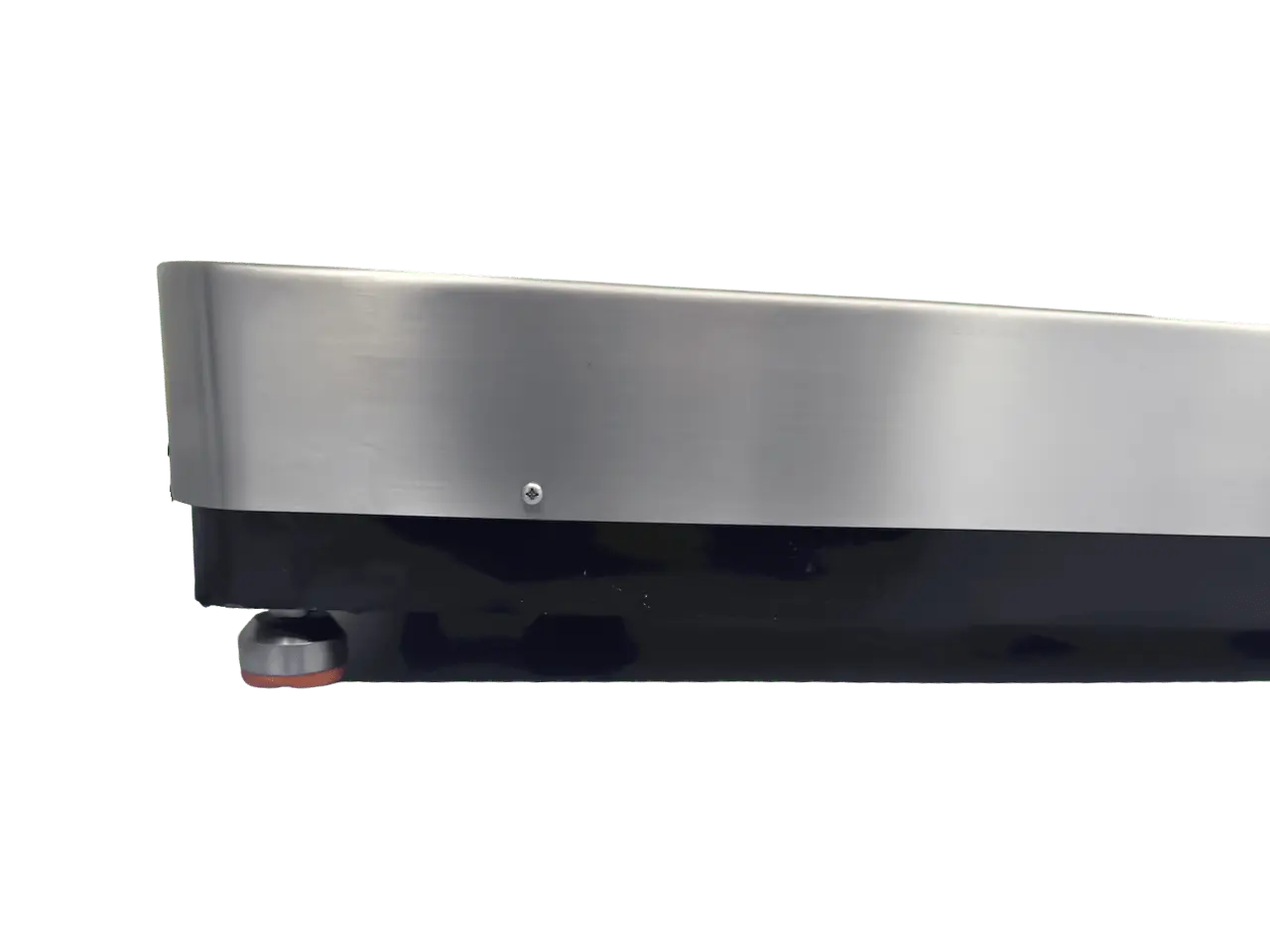

Breaking system
Electric brake control ensures ease of operation. An automatic brake compensation system maintains stability on uneven surfaces.

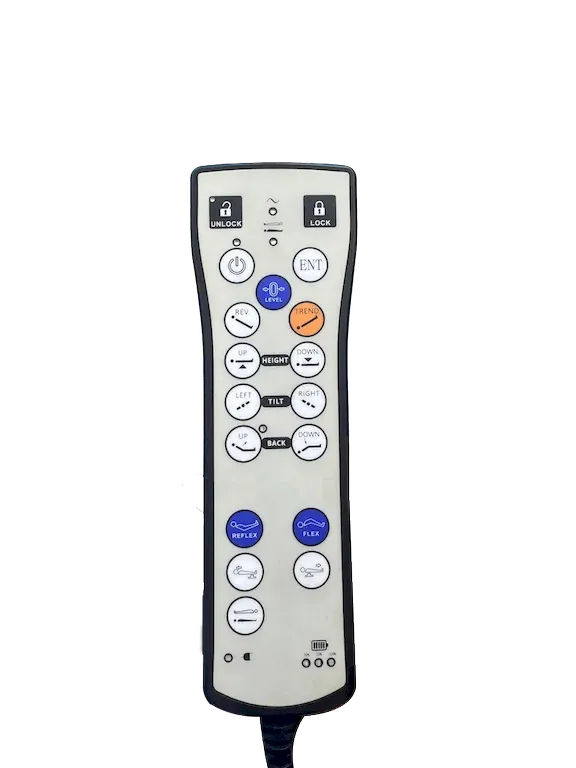

Control System
The dual-control system—handheld controller and built-in panel—enhances operational safety and reliability. Features include brake release, one-touch reset, one-touch V-positioning, automatic locking, and optional wireless remote control.

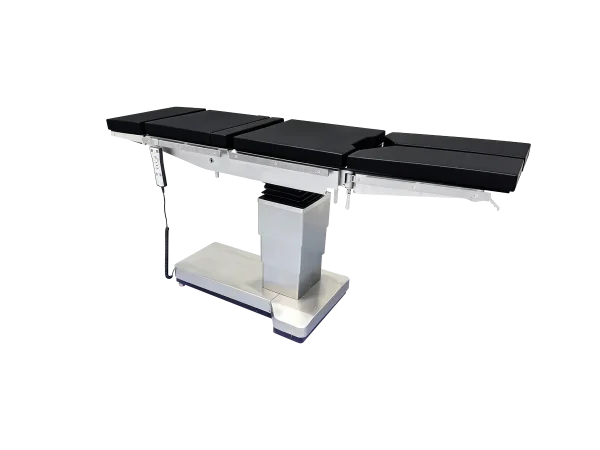

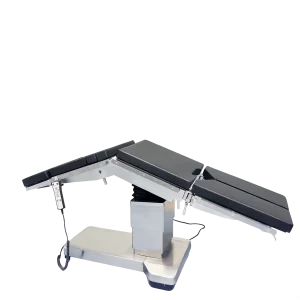

Interchangeability of Tabetop
The interchangeable head and leg sections, combined with longitudinal tabletop slide, provide excellent operating space and unobstructed access for surgical equipment such as C-arms and surgical microscopes.

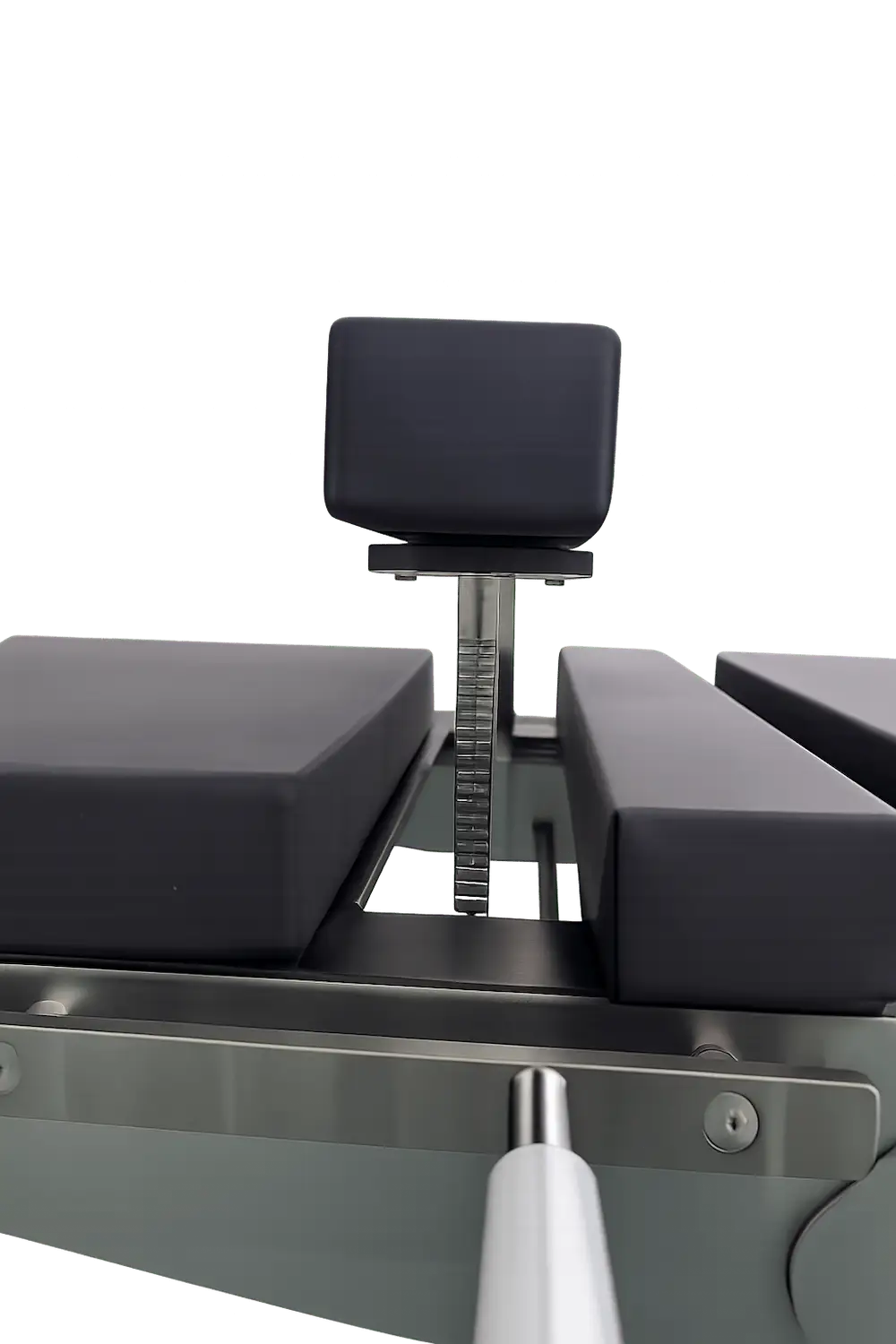

Kidney Bridge
Powered kidney bridge provides a quick and easy 120mm of patient’s lumbar lifting height for X-ray imaging during kidney surgery.

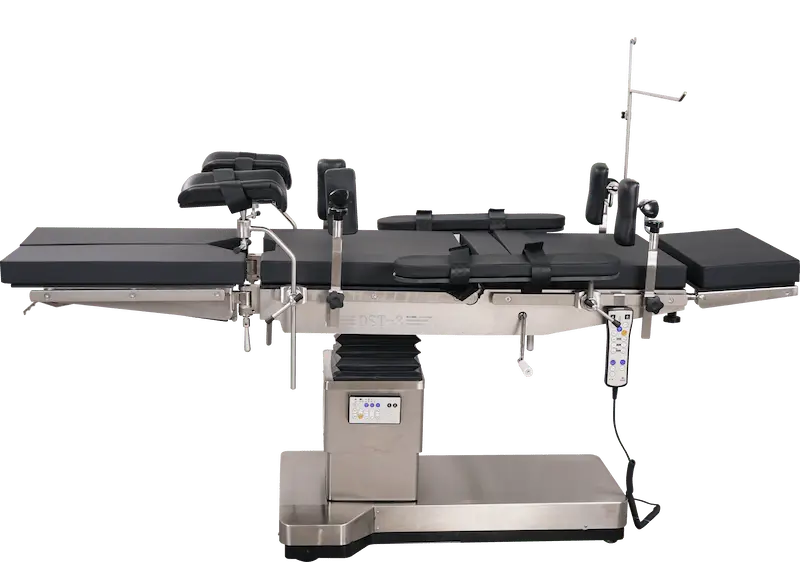

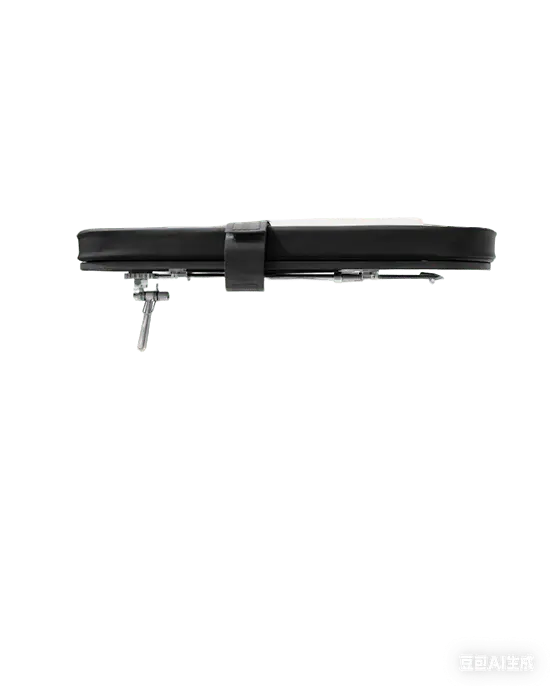

Standard Accessories

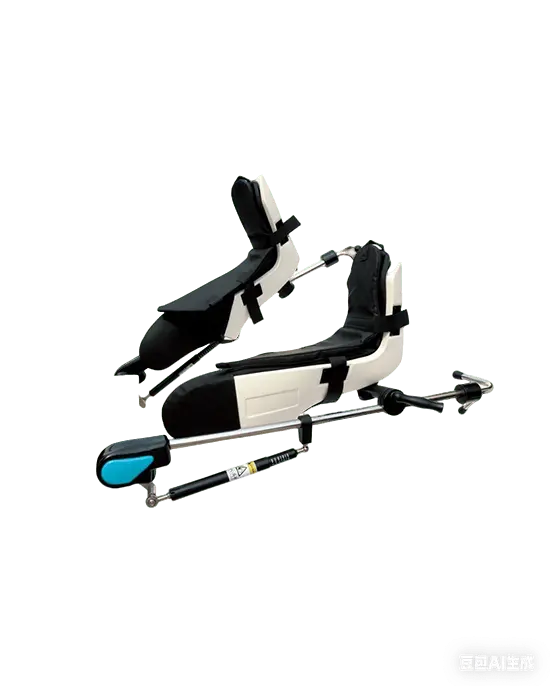

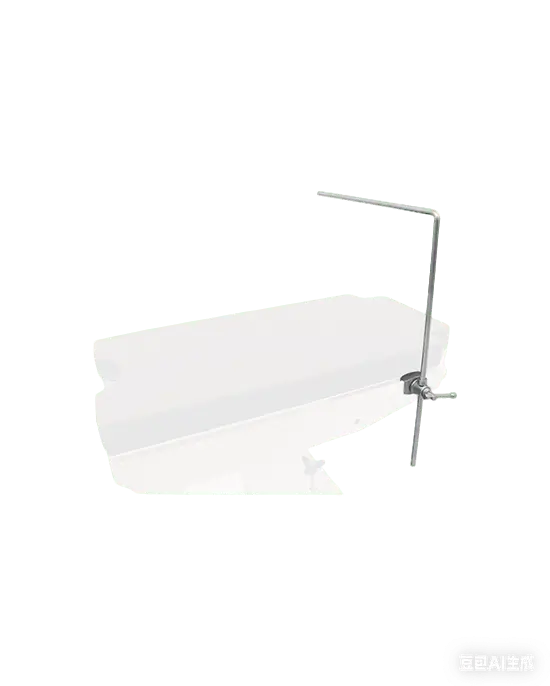

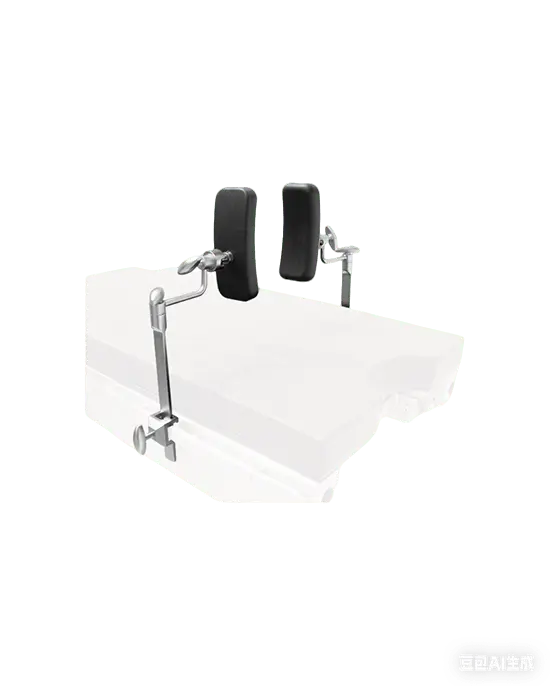

Standard configuration includes leg supports, shoulder supports, lumbar supports, an anesthesia screen, and patient safety straps, meeting the essential requirements for routine surgical procedures

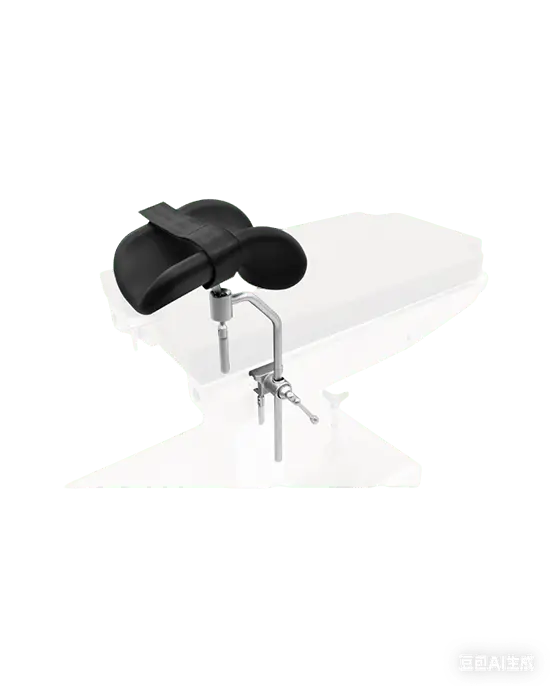

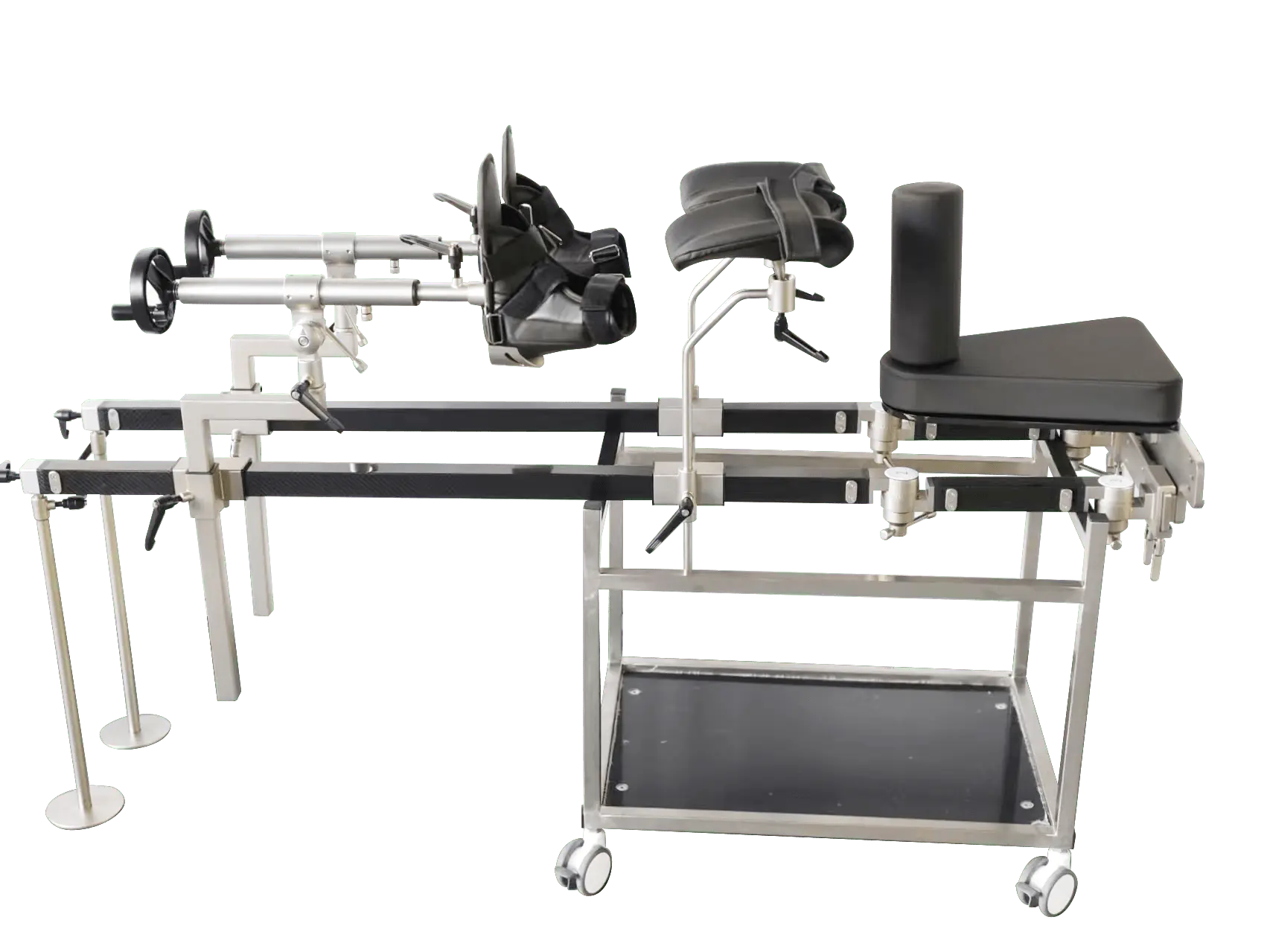

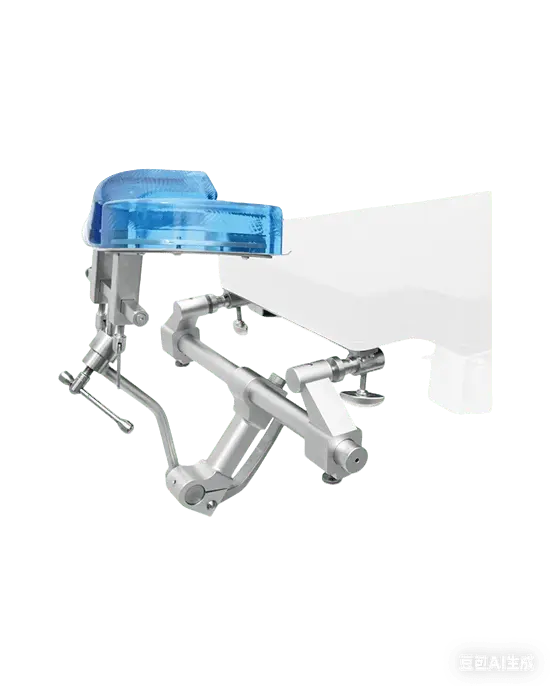

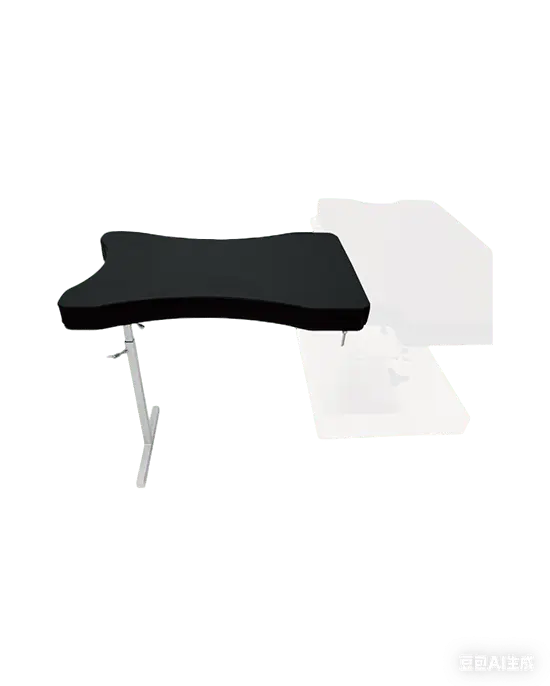

Variety of Accessories
Deman collaborate closely with clinicians in the development of our medical equipment and provide a comprehensive range of surgical accessories and patient positioning solutions designed to meet diverse clinical requirements. These solutions enhance procedural safety, improve operating room workflow efficiency, and support better clinical outcomes for patients.
Functions & Positions
Minimum table height
660 mm
Maximum table height
1000mm
Trendelenburg
25°
Reverse Trendelenburg
-25°
Lateral tilt right
22°
Lateral tilt lift
22°

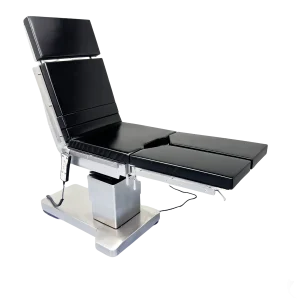

Back rest Up
80°
Back rest down
-45°
One-touch Reflex position
Flex position
Head rest down
-90°

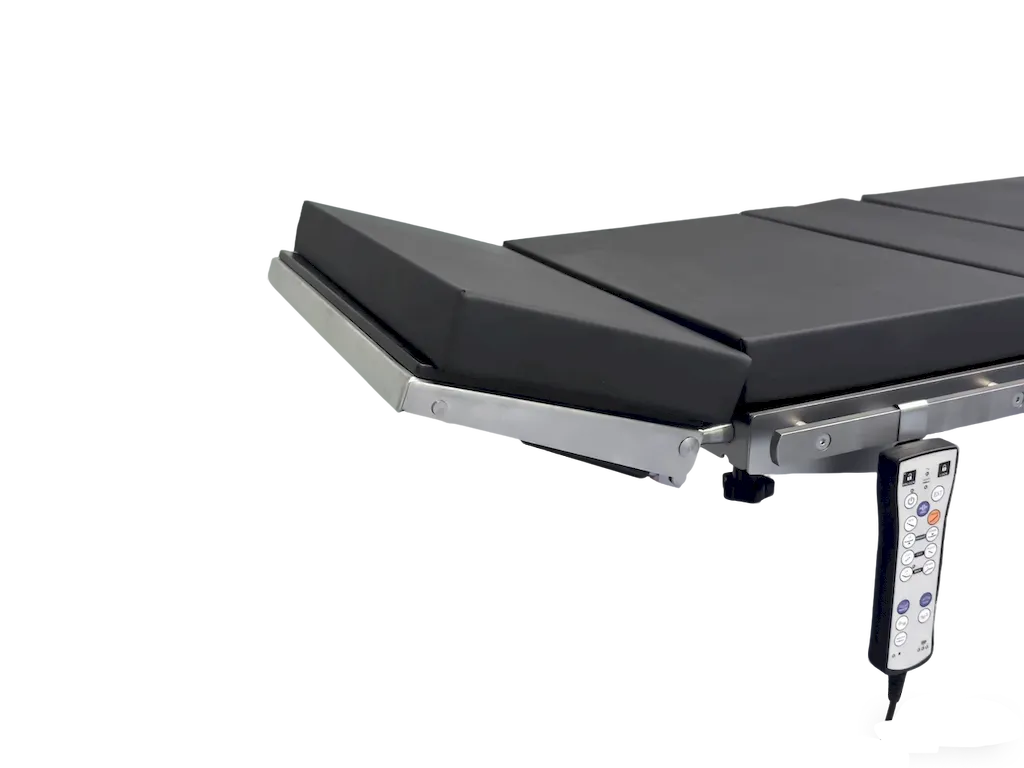

Head rest up
30°
Leg rest up
28°
Leg rest down
90°
Foot rest up outwards
90°
Horizontial slide
330mm
SPECIFICATIONS
Technical parameters:
| Table size(Length/Width) | 2150×540mm±10mm |
| Height(min/max) | 660-1000mm±10mm |
| Elevation range | 340mm±10mm |
| Horizontial slide | 330mm±10mm |
| Trendelenburg | 25°±2° |
| Reverse Trendelenburg | -25°±2° |
| Lateral tilt movement | +22°/ -22°±2° |
| Back rest movement | +80°/ -45°±2° |
| Leg rest up/down | +28°/ -90°±2° |
| Head rest movement | +30°/ -90°±2° |
PRODUCT VIDEO
Warranty
What warranty do your products have?
- We offer a 1-year standard warranty, which can be extended upon request.
- Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
- After the warranty period, spare parts are charged at cost, but technical support remains free.
FAQ
What quality standards does your company meet?
- We hold more than 20 international certifications, including European CE, North American FDA, ISO 9001, ISO 13485, ISO 14001, ISO 18001；45001；IEC 60601 ；Bangladesh Medical Device Registration; Uzbekistan Medical Device Registration; Russian Medical Device Registration.
- We have over 50registered patents and continuously develop new technologies and quality systems to enhance product reliability and service efficiency.
What warranty do your products have?
- We offer a 1-year standard warranty, which can be extended upon request.
- Products that fail due to manufacturing defects within one year from the purchase date will receive free spare parts and assembly instructions.
- After the warranty period, spare parts are charged at cost, but technical support remains free.
What is your delivery time?
- Our standard lead time is 21days.
What payment options do you offer?
- We offer flexible payment terms, including T/T, L/C, major credit cards, and credit terms available after customer evaluation.
Do you offer OEM service?
- Yes. We have a professional R&D team capable of customized product development based on your specifications.
Is color customization available?
- Yes. Color customization is available based on customer requirements for wholesale orders.
