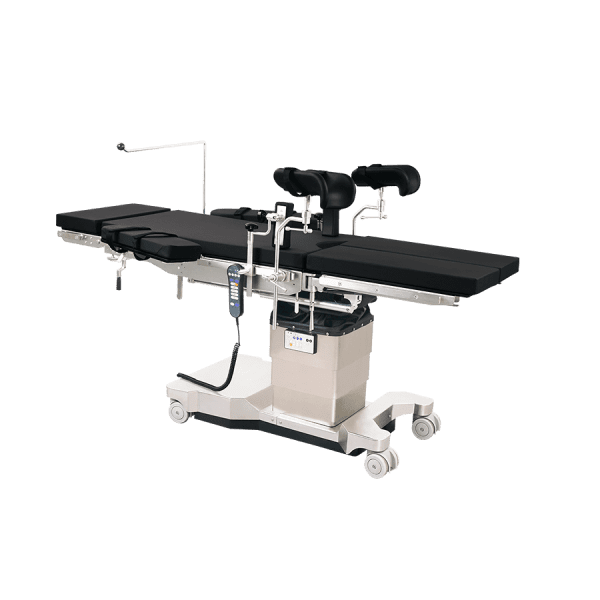

DST-600T Electro-hydraulic operating table
Product Overview：
The DST-600T electro-hydraulic operating table is a professional device suitable for multi-department surgical procedures. With an electro-hydraulic system as its core, it offers precise operation and stable performance.
Design
The operating table adopts a modern, ergonomic design that integrates electric-hydraulic technology, supporting the latest surgical workflows and imaging requirements. Its intuitive layout ensures safe, efficient, and user-friendly operation across multiple specialties.
Multi Function
Six electric-hydraulic movements—lifting, Trendelenburg/reverse, lateral tilt, backrest up/down, longitudinal slide, and central braking—are powered by ten hydraulic cylinders. Dual control systems, one-button reset, V/Λ positioning, and C-arm compatibility enhance surgical flexibility.
Base
Featuring an SUS304 stainless-steel exterior and an ultra-low concave base, the design ensures unobstructed C-arm access. The base is equipped with four 100 mm central-locking castors with automatic compensation, providing exceptional mobility and stability.
Material
All table sections are constructed from carbon fiber, a high-strength, radiolucent material that enables excellent X-ray transmission.
The table is equipped with a 6 cm dual-layer memory foam mattress that maximizes patient comfort during long procedures and provides effective pressure redistribution.
Caster
The base is equipped with four 100 mm dual-disc central-locking castors designed for ultra-low rolling resistance, allowing effortless on-the-spot rotation. The operating table features an automatic brake compensation system that maintains stability even on uneven floors.
Control System
A dual-system setup—hand controller plus built-in control panel—provides operational redundancy. The LCD hand controller includes posture memory, auto-lock in 50 seconds, and supports optional wireless remote control.
Specifications
Technical parameters:
|
Table size(Length/Width) |
2170×540mm±10mm |
|
Height(min/max) |
530-1030mm±10mm |
|
Elevation range |
500mm±10mm |
|
Horizontial slide |
350mm±10mm |
|
Trendelenburg |
30°±2° |
|
Reverse Trendelenburg |
30°±2° |
|
Lateral tilt movement |
+25°/ -25°±2° |
|
Back rest movement |
+80°/ -40°±2° |
|
Leg rest up/down |
+35°/ -90°±2° |
|
Head rest movement |
+60°/ -90°±2° |
Functions & Positions
Minimum table height
530 mm
Maximum table height
1030mm
Trendelenburg
30°
Reverse Trendelenburg
-30°
Lateral tilt right
25°
Lateral tilt lift
25°
Back rest Up
80°
Back rest down
-40°
Reflex position
Flex position
Head rest down
-90°
Head rest up
60°
Leg rest up
35°
Leg rest down
90°
Leg rest up outwards
90°
Longitudinal sliding
350mm
