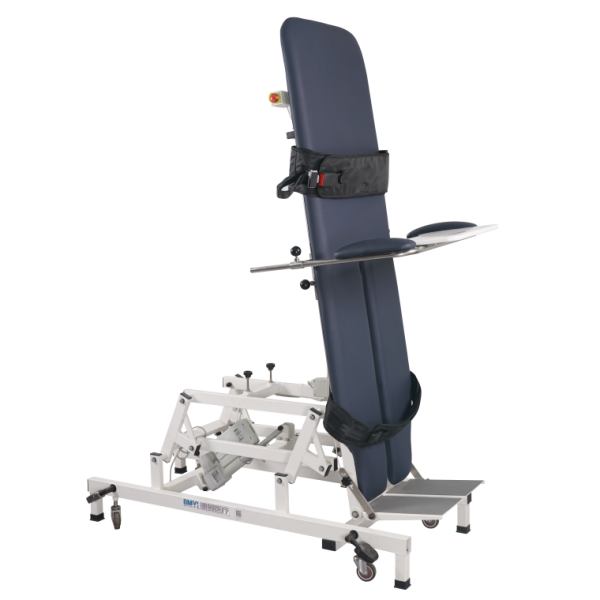

DHC-II Electric upright bed

The electric standing bed manually controls the bed body to stand up, and assists the patient to transition from lying position to upright position for standing training, so as to effectively stimulate proprioception, improve lower limb muscle strength and lower limb control ability, and prevent postural hypotension.

The electric standing bed is mainly composed of bed surface, bed frame, foot pedal, handheld controller, control box, electric push rod, armrest table (optional), fixed belt and caster.

Pedal adjustment Angle minimum adjustment Angle is 75°; The maximum adjustment Angle is 115°.

Standing Angle

The adjustment range of the standing Angle is 0° ~ 85°, and the maximum standing Angle is no more than 85°.

Bed elevation distance

When the bed is placed horizontally, the height of the bed is adjusted from 450mm to 800mm

The standing bed can carry a maximum safe load of 180kg for lifting and standing up movement, lifting and standing up to any intermediate position, can lock itself.

With four individual casters, the caster can be controlled to hover or land. Easy to fix and use.

With a foot cap, anti-slip wear.

Split-leg design is adopted to facilitate the fixation of lower limbs and knees.

Emergency stop function.
