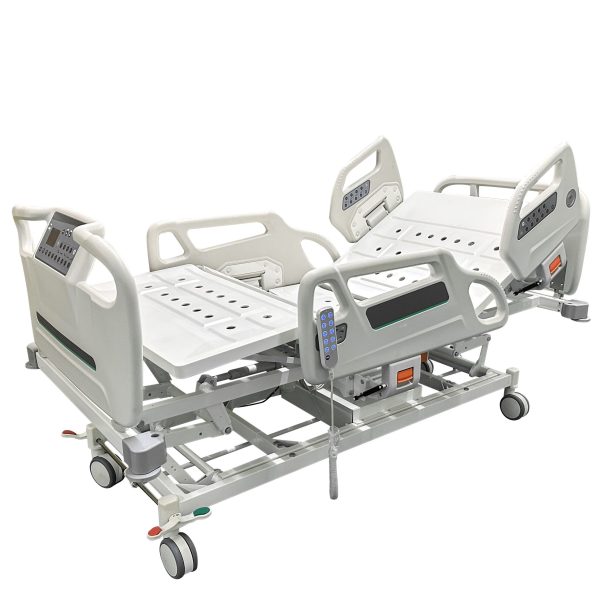

Multi functional electric hospital bed

The bed tail panel is equipped with an LCD display control panel, a hand controller and guardrail operation.

There are 4 motors;

The whole bed can be weighed.

Driven by a medical ultra – silent DC motor, with stable and reliable performance,

it can realize functions such as one – key cardiac chair position,

one – key CPR position, one – key examination position, etc.

Manual CPR operation wrenches on both sides of the bed.

Luxury central control casters, integrated brakes;

The bed board is made of cold-rolled steel plate by one-time stamping forming, with good anti-slip and breathability.

Size 2200*1050*500/830mm
Bed surface size Excluding guardrails 1950×900 ±10mm
Bed surface size Including guardrails 2200×1050±10mm
Bed height above ground (excluding mat) Min:500±20mm
Bed height above ground (excluding mat) Max:830±20mm
Lift stroke 330±20mm
Head and foot tilt angle Head tilt:12°±2°
Head and foot tilt angle Foot tilt :15°±2°
Back angle 65°±5°
Leg angle 35°±5°
