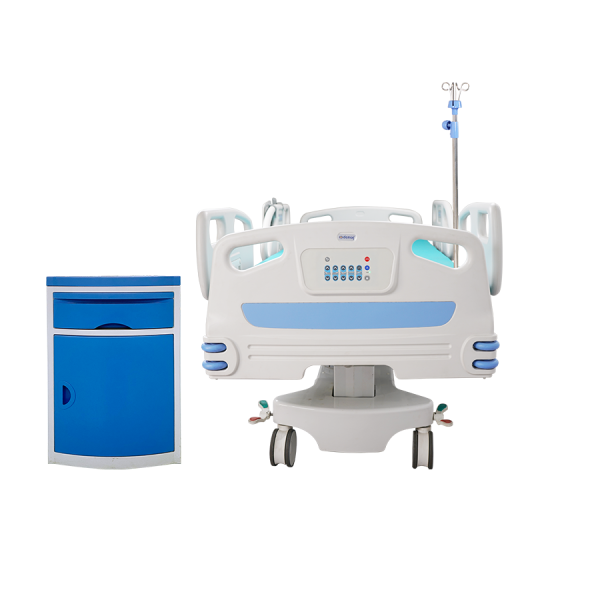

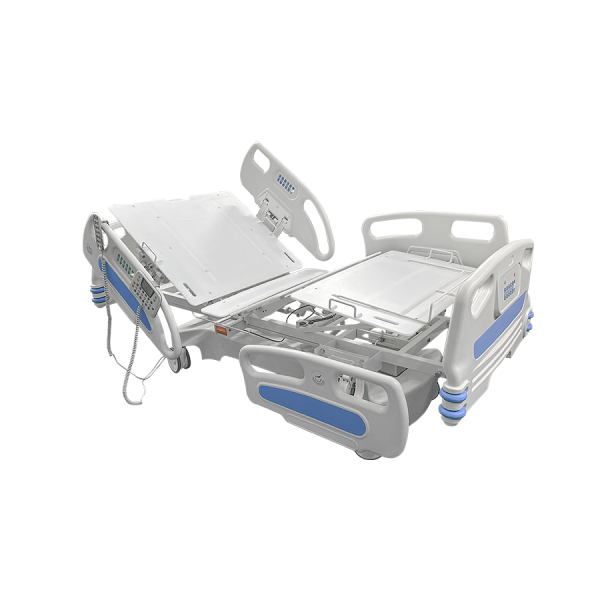

Multifunctional weighing bed(DM08)
HIGHTLIGHT
- Medical-grade acrylic bed board.
- Radiolucent design enables full-body X-ray. Integrated radiographic cassette slot allows rapid film changes.
- Four control points: foot panel, nurse console, handheld remote, and bedside rail panels (inner/outer).
- Extendable bed frame.
- Dual-segment lower leg articulation.
PARAMETER:
| Size | 2270×1060×550/950mm |
| Bed surface size Excluding guardrails | 1950×910±10mm |
| Bed surface size Including guardrails | 2270×1060±10mm |
| Bed height above ground(excluding mat) | Min: 550±20 mm |
| Bed height above ground(excluding mat) | Max: 950±20mm |
| Lift stroke | 400±20mm |
| Head and foot tilt angle | Head tilt: 12°±2° |
| Head and foot tilt angle | Foot tilt: 15°±2° |
| Back angle | 65°±5° |
| Leg angle | 35°±5° |
PRODUCT
Scientific weighing, weighing display.
The bed board is made of highly transparent acrylic board.
Angle displays are set on both the front and rear guardrails,
which can clearly show the elevation angle of the back bed board and the inclination angle of the bed body.
Comes with an extendable bed frame.
Manual CPR operation wrenches on both sides of the bed.
