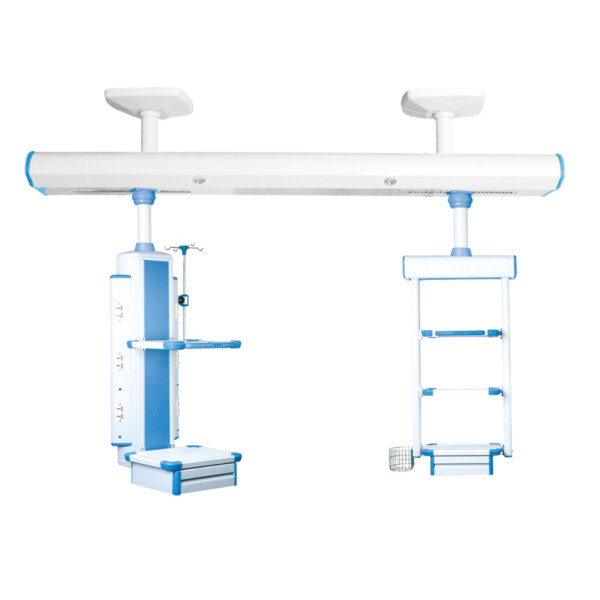

DMYL-180E/X Multifunctional medical column
HIGHTLIGHT
- Air pipes and power lines route through ABS wire grooves from cabinet to bridge body.
- Ensures pipelines move synchronously with cabinet during lateral translation.
- Achieves zero-wear operation eliminating abrasion from traditional wiring.
PARAMETER:
| Installation method | Suspended ceiling type | |
| Bridge length | 2800mm(customizable on site) | |
| Wet Zone(X Zone) | Dry Zone(EZone) | |
| Left and right translation distance | ≥380 | ≥380 |
| Box rotation angle | 340° | 340° |
| instrument platform | 550x400mm,3 pieces | 550x400mm,2 pieces |
| drawer | 1 pieces | 1 pieces |
| Infusion stand | 1 pieces | 1 pieces |
| Gas terminal | National standard:2 oxygen units Negative pressure suction 2,air 2 | |
| Power socket | 10 pieces | 10 pieces |
| network interface | 1 pieces | 1 pieces |
| Telephone interface | 1 pieces | 1 pieces |
| Grounding terminal | 2 pieces | 2 pieces |
| LED lighting | 1 pieces | 1 pieces |
| customer demand | Customizable | |
PRODUCT
The main material is 6063 high-strength aviation grade aluminum profile; Strong and durable.
Surface treatment using Aksu environmental powder electrostatic spraying; Effectively reduce the risk of infection in the laminar flow environment.
The embedded parts of the hanging tower can be fixed or welded with expansion bolts, bearing capacity 2000kg.
The product has passed the earthquake test of more than 7, and meets the requirements of the national building seismic code.
The special joint of the medical crane tower is rotated 100,000 times without damage.
Net load ≥100Kg, passed the IEC 60601-1ndedition 4 times load test.
The standard configuration of Zone E is:
