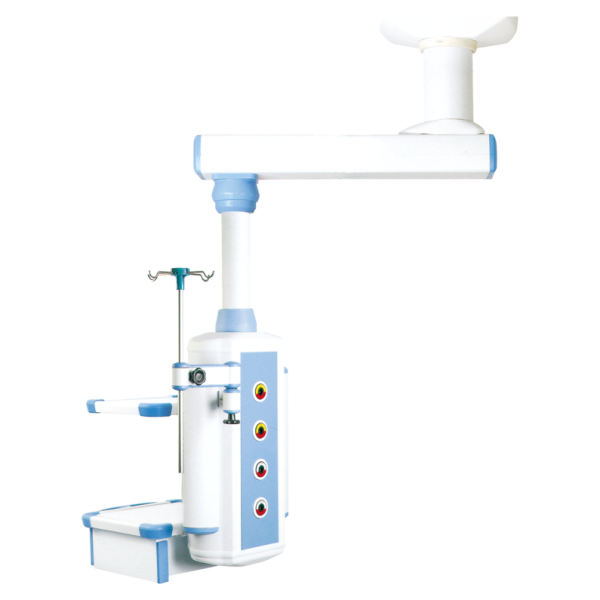

DMYL-3200 Single arm mechanical surgical tower

With its compact structure and convenient use, single-arm davit tower is an ideal workstation for medical gas, power supply, instrument carrying platform and network output terminal in operating room. In line with the requirements of laminar flow and height of the laboratory operating room, the installation method adopts the ceiling suspension mode, the design is reasonable, can rotate in the range of 340 degrees, and the brake is configured, can easily move and lock the position of the tower according to the requirements of medical staff; The height of the equipment makes the medical staff reach and handy, and it is an essential medical auxiliary equipment in the operating room of small and medium-sized hospitals.

Installation method Suspended ceiling type
Cantilever rotation radius ≥660mm
Cantilever rotation angle 340°
Box rotation angle 340°
instrument platform 550x400mm,2 pieces
drawer 1 Pieces
Infusionstand 1 Pieces


Gas terminal

National standard:2 oxygen units Negative pressure suction 2,air 2
Power socket 10 Pieces
network interface 1 Pieces
Telephone interface 1 Pieces
Grounding terminal 2 Pieces
customerdemand Customizable
