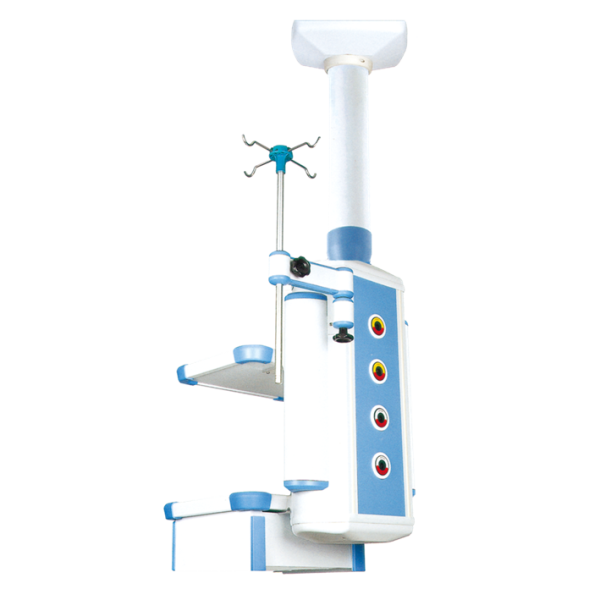

DMYL-580 Multifunctional medical column
Tower rotation Angle 340°.
There is no relative movement between the power lines and air source pipelines of the equipment carried on the tower and the tower body, and all power lines and air source pipelines are not exposed in the tower body to ensure that the line will not fall off due to changes in the position of the tower during the movement.
The main material is made of high-strength aviation grade aluminum. The dust-proof rating of the hanging tower reaches IP6X, and the fire-proof rating reaches UL94-V0.
The surface of the hanging tower is sprayed with Akzo antibacterial powder, which effectively reduces the risk of infection in the laminar flow environment during surgery.
The air source interface and power supply are distributed on both sides of the tower body to realize the separation of electricity and gas. Ensure the separation of gas and electricity can realize the separation of strong and weak electricity.
| Installation method | Suspended ceiling type |
| Cantilever rotation radius | / |
| Cantilever rotation angle | / |
| Box rotation angle | 340° |
| instrument platform | 550x400mm,2 pieces |
| drawer | 1 pieces |
| Infusion stand | 1 pieces |
|
Gas terminal |
National standard:2oxygen units Negative pressure suction 2,air 2 |
| Power socket | 10 pieces |
| network interface | 1 pieces |
| Telephone interface | 1 pieces |
| Grounding terminal | 2pieces |
