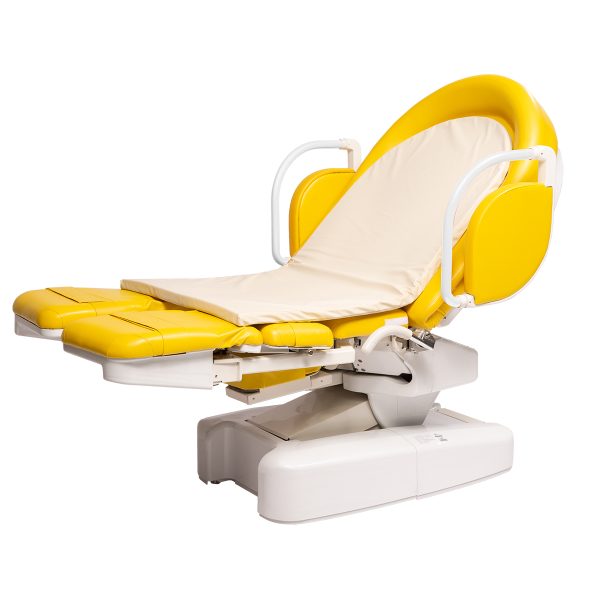

DST-3003 Electric operating table (Obstetrics and Gynecology)
HIGHTLIGHT
- The main body is made of 45#steel,the exterior parts are made of steel spraying.
- The power system uses a linear motor.
- Tri-segment design: Articulating backrest & table tilt. Optimizes surgical positioning and patient comfort.
- All-in-One OB/GYN Suite: Delivery-Surgery-Diagnostics + Rapid C-Section.
PARAMETER:
| Size （L/W/H） | 2058×1080×550±10 mm |
| Minimum height | 550±10mm |
| Net weight | 305kg |
| Lift stroke | 360±10mm(Electric) |
| Back panel folding angle | 60°/-20°±2° |
| Seat plate folding angle | ±25°±2°(Electric) |
| Foot support plate deflection angle | 0°~33°±3°(Electric) |
| Foot support plate folding angle | 0°~90°±2°(Manual gas spring) |
| Leg board folding angle | 75°±2(Manual) |
| Rotation angle of side armrest | 180°(Manual) |
PRODUCT
The main body is welded with A3 steel, strong structure and smooth operation. And do anti-glare treatment, reduce the eye fatigue of medical staff, convenient cleaning and disinfection.
The bed is made of A3 steel, the appearance of steel spray, anti-fouling and anti-rust, to ensure the best disinfection and purification requirements and anti-collision requirements.
The operating table is easy to use, flexible, low noise and stable performance.
The bed is beautiful in appearance, easy to clean and disinfect, contains a pull-out auxiliary table, easy to store, and is equipped with a retractable ABS dirt basin, which can prevent the splash of amniotic fluid during childbirth, and is convenient to use, which is the preferred product of the hospital’s obstetrics and gynecology department and urology department.
