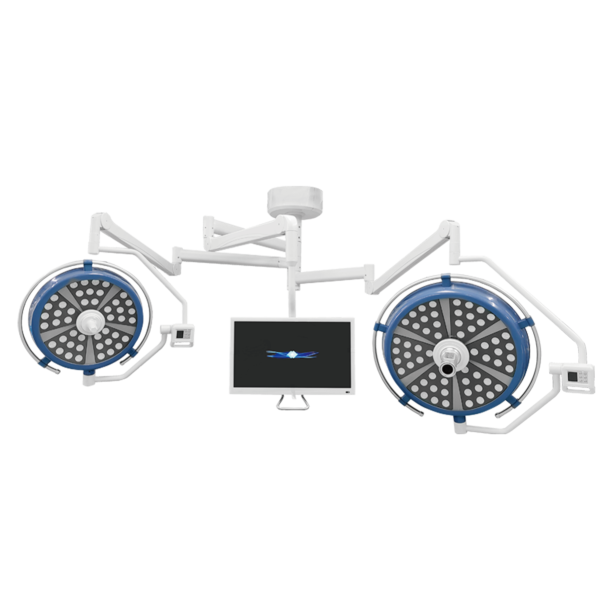

YDE700/500-TV LED surgical shadowless lamp (aluminum shell type)

Color temperature adjustment: the lamp holder is installed with different color temperature “OSram” LED lamp beads, in the case of maintaining the color rendering index 90, the color temperature is adjusted between 3000K and 6700K; To achieve the best tissue resolution.

Bright and uniform lighting: the beam emitted by the LED light source is focused through a specially designed high-performance lens in the surgical area to meet the optical domain required for surgical lighting; The maximum illumination is 160.000LUX. The brightness of the LED is stepless controlled by digital means, and the illumination of each lamp can be adjusted separately. .

The failure rate is very low: each LED module contains 9-10 LED beads, each module contains an independent electronic control system, the lamp holder has a very low failure rate, and the failure of a single LED will not affect the function of the lamp holder.

The image processing system independently developed by Hikvision can adapt to a variety of lighting environments. Through fast focusing, strong light suppression, anti-flicker and other functions, it can provide high-quality images with clear images, true colors in the high-illuminance environment of up to 18000lux. Built-in ND filter, with a variety of scene modes, more suitable for shadowless lamp shooting.

Stable and reliable, excellent performance

Medical electrical standard design, electrical and material characteristics are stable and reliable.

Supports fast start and low delay, the start time is less than 10s, and the video output delay is less than 100ms.

Provides small SDI interface, flexible choice of UART or RS485 communication interface, support VISCA, Pelco P/D and other communication protocols.
