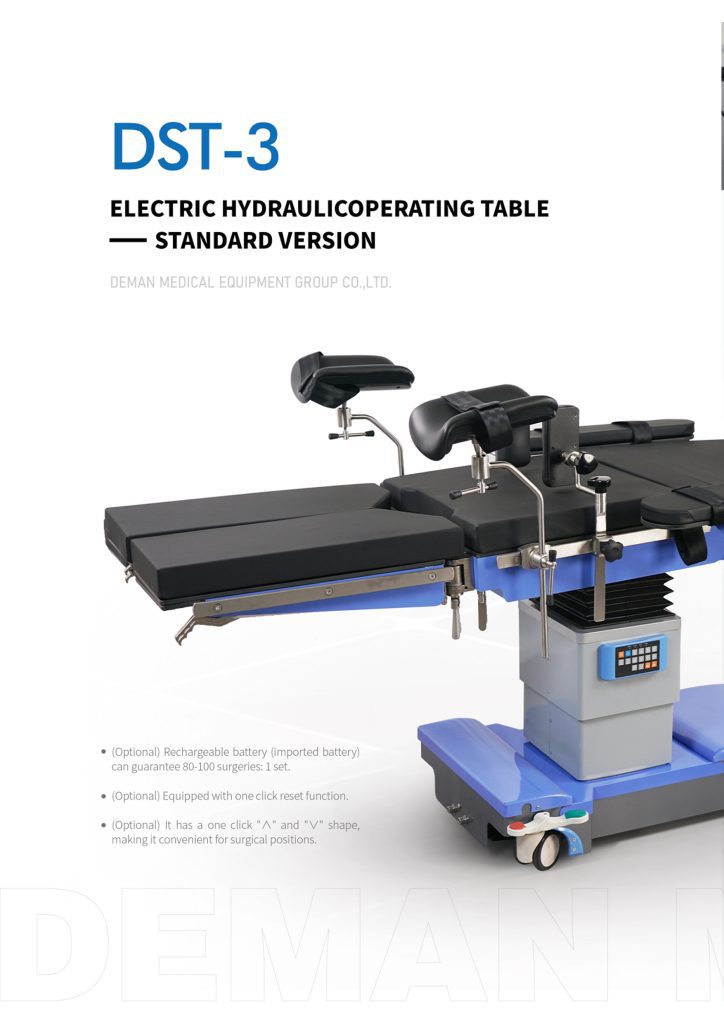

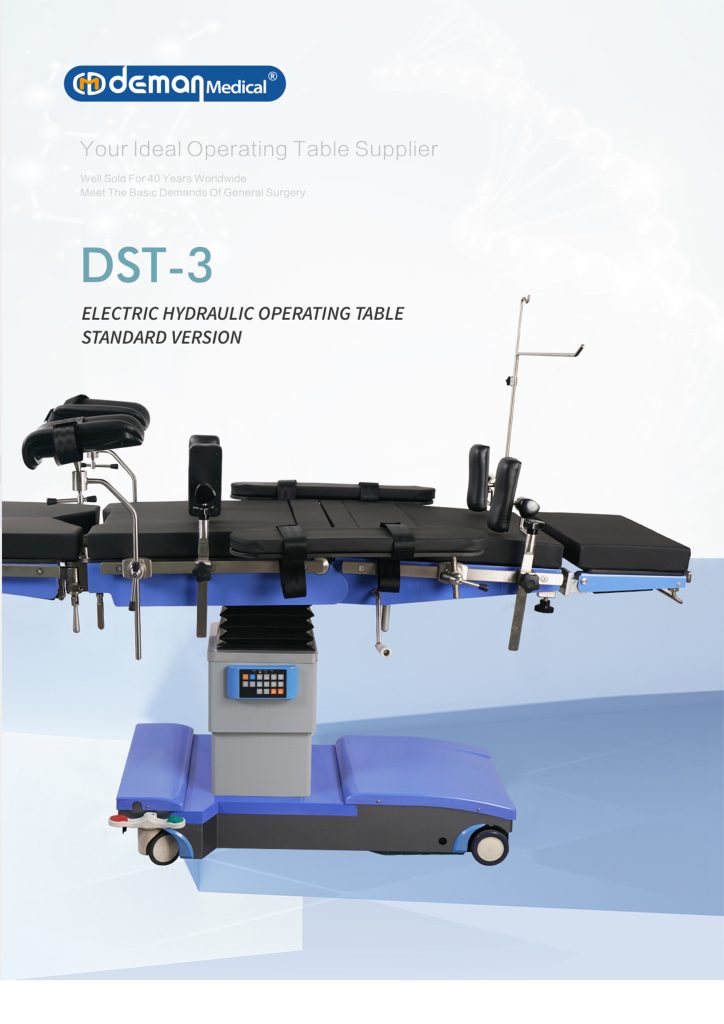

DST-3 Electric hydraulic operating table

HIGHTLIGHT

Hydraulic transmission structure.
Transparent material.
Dual-redundant electronic control systems—a handheld remote and integrated bedside panel—operate independently to ensure reliable surgical table operation.
High-precision linear guide rail.
Wide activity space for C-arm and foot space for surgical medical staff.
One-button A-shaped and V-shaped.
Function of head-foot interchange.

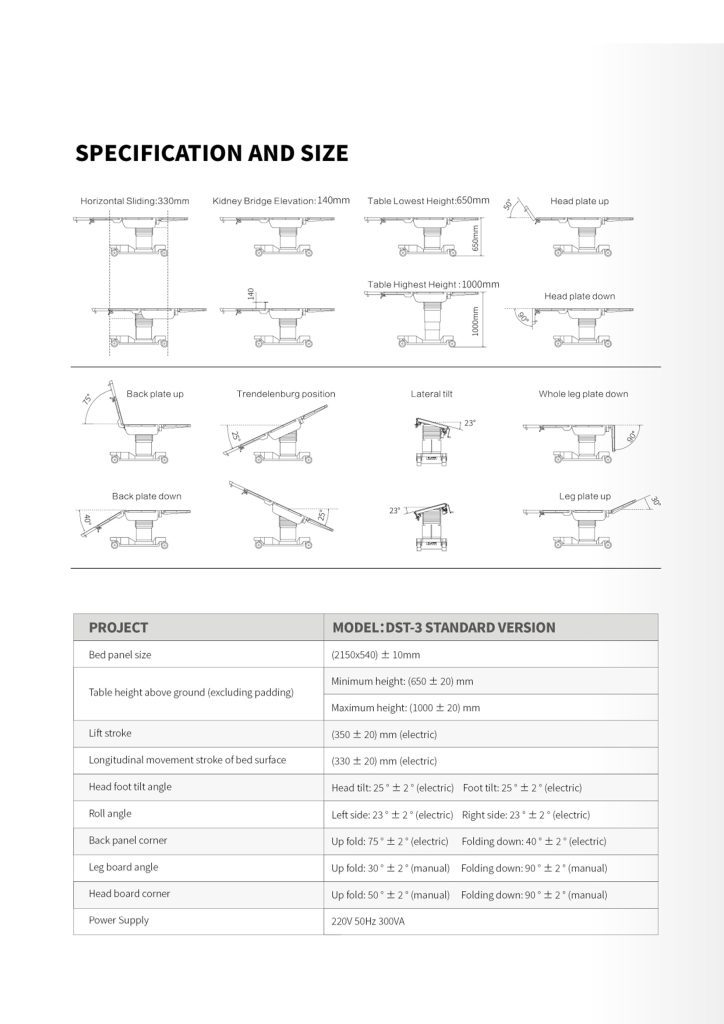

PARAMETER:

Length	2150±10mm
Width	540±10mm

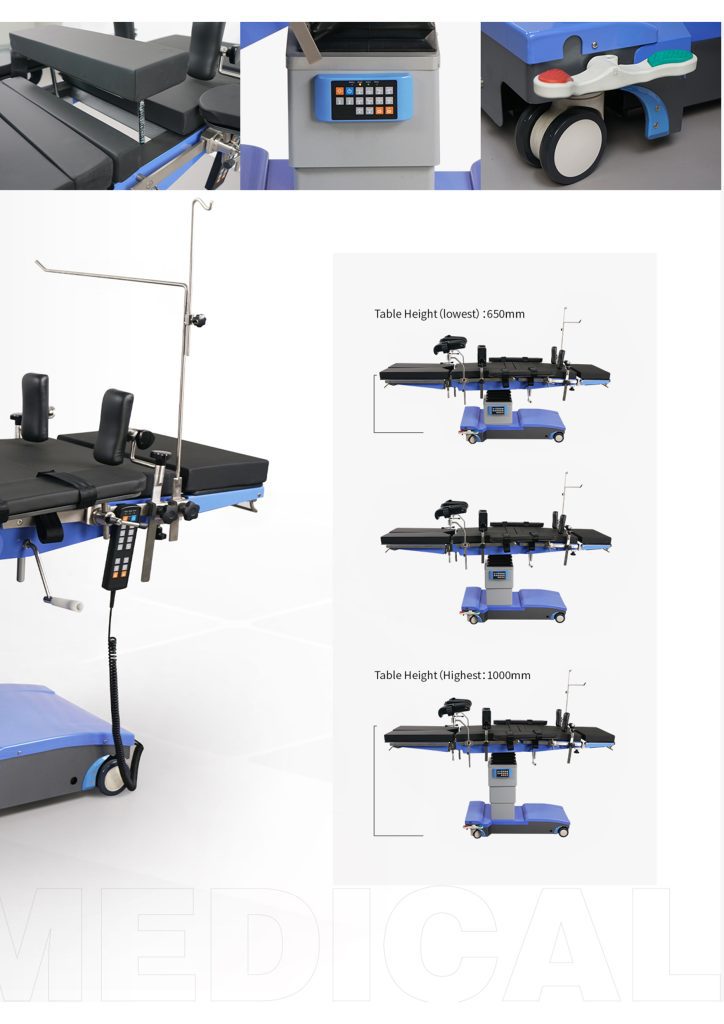

Height	650±20mm
Longitudinal slide	330±20mm
Head and foot tilt angle	25°±2°
Roll angle	23°±2°
Fold up the back panel	75°/-20°
Fold up the leg board	30°/-90°
Fold the head board up wards	50°/-90°

PRODUCT

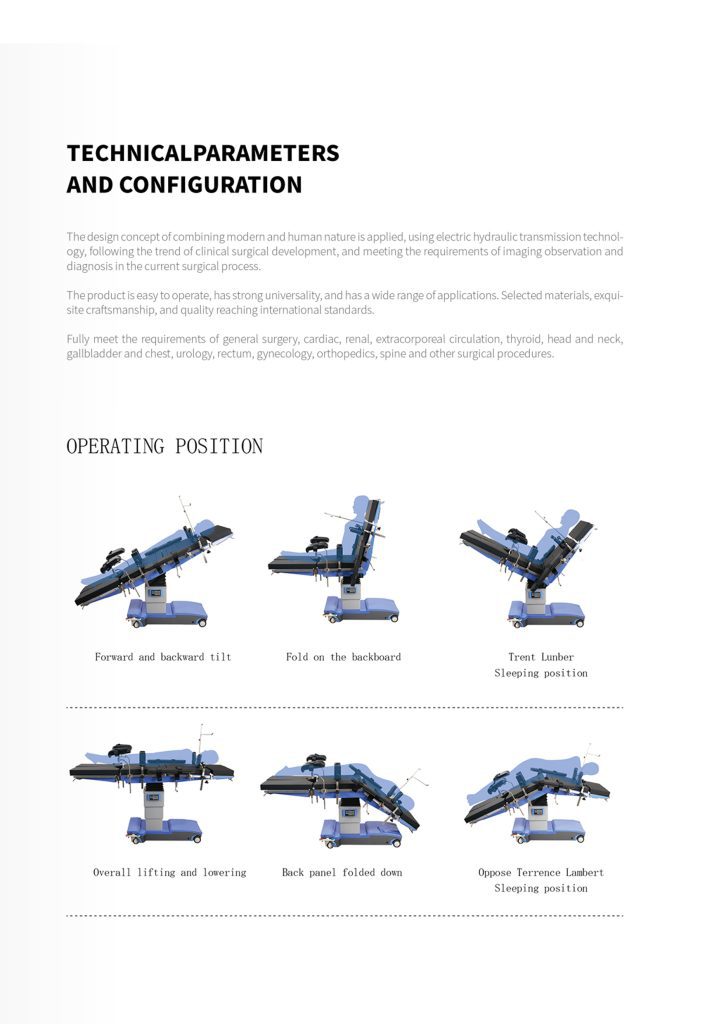

Applying the design concept of combining modern and human nature, adopting electro-hydraulic transmission technology, following the trend of clinical surgery development, and meeting the requirements of image observation and diagnosis in the current surgical process. The product has the advantages of simple operation, strong versatility and wide application. Material selection, fine workmanship, quality to reach the international level. Fully meet the general surgery, heart, kidney, cardiopulmonary bypass, thyroid, head and neck, gallbladder and chest, urology, rectum, gynecology, orthopedics, spine and other surgical requirements
